Multi-Channel Receivers

Teledyne Microwave UK's Multi-Channel High-Performance Receivers provide significant advantages in ESM / ELINT application. They incorporate patented features offering wide-band synthesized capability from 500MHz to 18GHz, with frequency extensions up to 40GHz.

The Teledyne Defence & Space product line of high-sensitivity receivers offers 1-6 phase—and amplitude-matched channels with multiple IF outputs.

PRODUCT	DATASHEET	APPLICATIONS

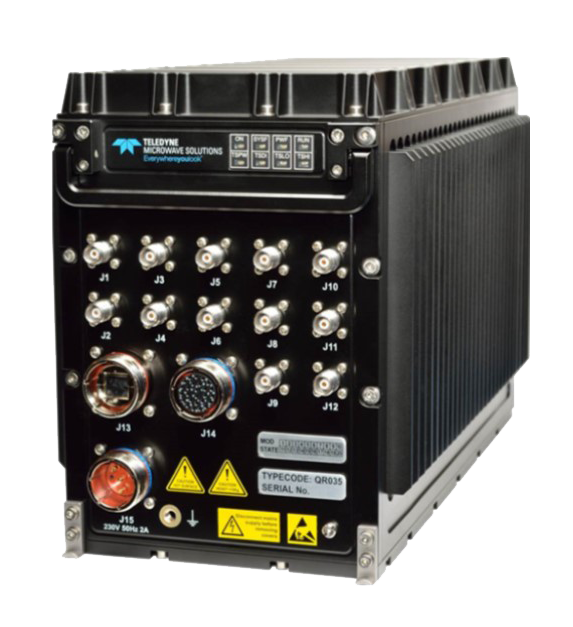

QR035 - High Performance Receiver		Electronic Intelligence (ELINT) Electronic Support Measures (ESM) Defensive Aids Suites (ECM Set–on) Combined ELINT / ESM Sensors Ground, Airborne & Naval Environments

Features & Benefits

Modular architecture allows it to be configured for multiple channels with phase- and amplitude-matched performance across all channels
Full band coverage (options up to >40GHz)

Fast tuning speed
Integrated front end adaptive filtering
High spurious free dynamic range
Low colouration

Simultaneous ELINT & ESM operation
Frequency selective RF protection
Compact, expandable architecture mounted in a ¾ ATR or 1 ATR chassis or 19” rack mount variant
Low power consumption
