​​​Series​​​  ​Description

   SPC Series
The SPC Series, featuring Silicon Carbide MOSFETs, offers configurations from single to quad channels with 10A to 100A current ratings. Encased in a durable aluminum package, these controllers withstand up to 1,000 Vdc and include advanced protections like overtemperature, overvoltage, and constant current limiting, along with a 2 kV ESD safe rating.
Equipped with a CAN bus interface for robust system integration, these SSPCs ensure precise control with isolated inputs and outputs, enhancing signal integrity and safety. Ideal for aerospace, defense, and industrial applications, the SPC Series streamlines power management systems, increasing reliability while reducing weight and cost.


   LD24KK
​The Series LD24KK solid-state relays are screened utilizing MIL-PRF-28750 test methods and are packaged in low profile hermetically sealed cases. These relays are constructed with state-of-the-art solid state techniques and feature fully floating power FET output technology. This allows the load to be connected to either output terminal and provides a low ON resistance. The input and output are optically isolated to protect input logic circuits from output transients. A trip status indicator turns on when an overcurrent condition has occurred and the short-circuit protection has been activated. Designed for outputs up to 270Vdc but also used in many applications switching 36, 28, 14, and 12Vdc.
MSL 1
Available options include:

LD24KK     5A, 270Vdc Load; 4.2-16Vdc Control, Short Circuit Protection and Trip Status

   LD00KQ
​The Series LD00KQ solid-state relays are screened utilizing MIL-PRF-28750 test methods and are packaged in low profile hermetically sealed cases. These relays are constructed with state-of-the-art solid state techniques and feature fully floating power FET output technology. This allows the load to be connected to either output terminal and provides a low ON resistance. The input and output are optically isolated to protect input logic circuits from output transients.​ Designed for outputs up to 270Vdc but also used in many applications switching 36, 28, 14, and 12Vdc.
MSL 1
Available options include:

LD00KQ     20A, 270Vdc Load; 4.2-18Vdc Control
 ​
 LD00KM
​​The Series LD00KM solid-state relays are screened utilizing MIL-PRF-28750 test methods and are packaged in low profile hermetically sealed cases. These relays are constructed with state-of-the-art solid state techniques and feature fully floating power FET output technology. This allows the load to be connected to either output terminal and provides a low ON resistance. The input (control) and output are optically isolated to protect input logic circuits from output transients.​ Designed for outputs up to 270Vdc but also used in many applications switching 36, 28, 14, and 12Vdc.
MSL 1
Available options include:

LD00KM     10A, 270Vdc Load; 4.2-32Vdc Control
​​

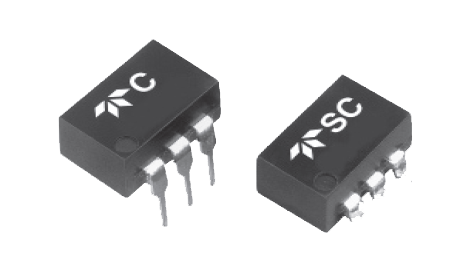

 C63​
Series C63 solid-state relays use an advanced design capable of switching heavy loads in a physically small 6-pin mini-DIP package. These relays have a power FET output that ensures low ON resistance and low leakage current. Optical isolation ensures complete protection of signal lines, power and ground bus and control circuits from switching noise and EMI. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 6
Available options include:
C63-10      1A, 60Vdc Load; 8-20mAdc Control; through-hole mounted
SC63-10     1A, 60Vdc Load; 8-20mAdc Control; surface mounted













 CD​
The CD series Solid-state Relay utilizes the latest technology to provide a low ON resistance. The control circuit is buffered to enable the relay to be driven directly from standard CMOS or open collector TTL logic circuits. Available options include short circuit protection and current overload protection or a status output line. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 1

CD relays are controlled by 3.8-6Vdc
C = Through-hole mount
SC = Surface mount

Available options include:
CD00CF       2A, 60Vdc Load
SCD00CF     2A, 60Vdc Load
CD01CF       2A, 60Vdc Load; control status
SCD01CF     2A, 60Vdc Load; control status
CD20CD       1A, 60Vdc Load; short-circuit protection
SCD20CD     1A, 60Vdc Load; short circuit protection
CD21CD       1A, 60Vdc Load; short-circuit protection & control status
SCD21CD     1A, 60Vdc Load; short circuit protection & control status

 F​R75-1​
The FR75-1 solid-state relay utilizes a power FET switch that is protected against short circuits and overload currents. The short-circuit protection feature provides protection when a short or overload occurs while the relay is on as well as when the relay is switched into a short. The FR75-1 is packaged in a low-profi le mini-DIP metal package. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 1


Available options include:

FR75-1      0.25Adc, 60Vdc Load; 3.8-5.5Vdc Control; through hole mounted​

 HD​
The HD solid-state relay utilizes the latest technology to provide a low ON resistance and an optically isolated output. The control circuit is buffered to enable the relay to be driven directly from standard CMOS or open-collector TTL logic circuits. Available options include short-circuit and current overload protection. The second option is a status output line.​ Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 1


HD relays are controlled with 3.8-32Vdc


Available options include:
HD00CF     2.1Adc, 60Vdc Load
HD02CF     2.1Adc, 60Vdc Load; with switch status​​
HD20CF     2.1Adc, 60Vdc Load; with short circuit protection
HD22CF     2.1Adc, 60Vdc Load; short circuit protection & switch status
HD24CF     2.1Adc, 60Vdc Load; short circuit protection & trip status

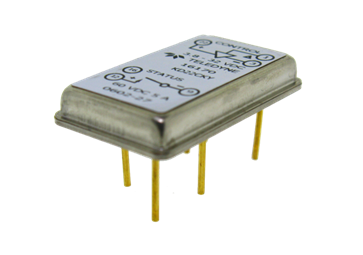

 KD/LD​
Series KD and LD solid-state relays utilize MIL-PRF-28750 test methods and are packaged in low-profile hermetically sealed cases. They feature fully floating power FET output technology. Options include short-circuit and current overload protection plus a status output line. Switch status returns the true status of the output switch and is optically isolated from the load. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 1

KD & LD relays are controlled with 15mAdc/3.8Vdc (TTL), and 1mAdc/0.3Vdc (CMOS).


Available options include:
KD00CK    5Adc, 60Vdc Load
KD02CK    5Adc, 60Vdc Load; with switch status​​
KD20CK    5Adc, 60Vdc Load; with short circuit protection
KD22CK    5Adc, 60Vdc Load; short circuit protection & switch status
LD00CM    10Adc (5Adc without heat sink), 60Vdc Load
LD02CM    10Adc (5Adc without heat sink), 60Vdc Load; with switch status​​
LD20CM    10Adc (5Adc without heat sink), 60Vdc Load; with short circuit protection
LD22CM    10Adc (5Adc without heat sink), 60Vdc Load; short circuit protection & switch status
​​
 LPBD100​
The LPBD100 is a dual-output 100 Vdc plastic relay. The relay output-switch contacts are normally closed and will conduct the load current until a voltage is applied to the relay input. With 4 volts or more at the relay input, the output-switch contacts open and the relay no longer conducts. The LPBD100 assembly contains two independent, completely isolated relays. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 6


Available options include:
LPBD100      0.25Adc, 100Vdc Load; 4-7Vdc Control;

The M33-2N is a military-style DC solid-state relay designed for high-current pulse load applications. It features the latest power FET output technology to minimize ON resistance. This feature provides minimum output voltage drop and allows the M33-2N to switch high pulse currents up to 100 amps at higher temperatures than those allowable with bipolar devices. The M33-2N utilizes transformer isolation to protect against transients, and are through-hole mounted. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 1


Available options include:
M33-2      7Adc, 60Vdc Load; 4.5-5.5Vdc (bias voltage), 80µA (CMOS) Control;

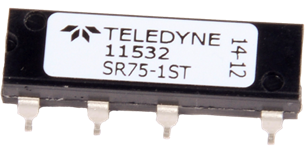

 SR75-1​
The SR75 solid-state relay utilizes a power FET switch that is protected against overload and short-circuit currents. The short-circuit protection feature not only provides protection should a short or overload occur while the relay is on, but will provide protection should the relay be switched into a short. It comes in through-hole or surface-mount 16-pin DIP packages. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 6

Available options include:
SR75-1      1.5Adc, 60Vdc Load; 3.8-32Vdc Control; through-hole mount
SR75-1S    1.5Adc, 60Vdc Load; 3.8-32Vdc Control; surface mount



 SR75-2​
The SR75-2 solid-state relay utilizes a power FET switch that is protected against overload and short-circuit currents. The short-​circuit protection feature not only provides protection should a short or overload occur while the relay is on, but will provide protection should the relay be switched into a short. It comes in through-hole or surface-mount 16-pin DIP packages. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 6

Available options include:
SR75-2     0.5Adc, 400Vdc Load; 3.8-32Vdc Control; through-hole mount
SR75-2S    0.5Adc, 400Vdc Load; 3.8-32Vdc Control; surface mount



​​
 ZD20CD​
Series ZD20CD solid-state relays use an advanced design capable of switching heavy loads in a physically small 6-pin DIP package These relays have a power FET output that ensures low ON resistance and low leakage current. Optical isolation ensures complete protection of signal lines, power and ground bus and control circuits from switching noise and EMI. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 6

ZD20CD       1A, 60Vdc Load; 8-20mAdc Control; through hole mounted
SZD20CD     1A, 60Vdc Load; 8-20mAdc Control; surface mounted​​

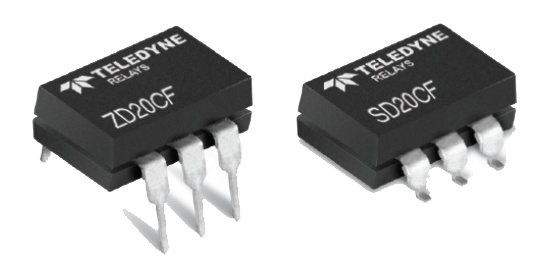

 ZD20CF​
Series ZD20CF solid-state relays use an advanced design capable of switching heavy loads in a physically small 6-pin DIP package These relays have a power FET output that ensures low ON resistance and low leakage current. Optical isolation ensures complete protection of signal lines, power and ground bus and control circuits from switching noise and EMI. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 6

Available options include:
ZD20CF       2A, 60Vdc Load; 8-20mAdc Control; through hole mounted
SZD20CF     2A, 60Vdc Load; 8-20mAdc Control; surface mounted

 ZD24CC​
Series ZD24CC solid-state relays use an advanced design capable of switching heavy loads in a physically small 6-pin DIP package These relays have a power FET output that ensures low ON resistance and low leakage current. Optical isolation ensures complete protection of signal lines, power and ground bus and control circuits from switching noise and EMI. Ideal for applications switching 36, 28, 14, and 12Vdc.
MSL 6

Available options include:
ZD24CC      0.5A, 80Vdc Load; 8-20mAdc Control; through hole mounted
SZD24CC     0.5A, 80Vdc Load; 8-20mAdc Control; surface mounted


​​​​​
