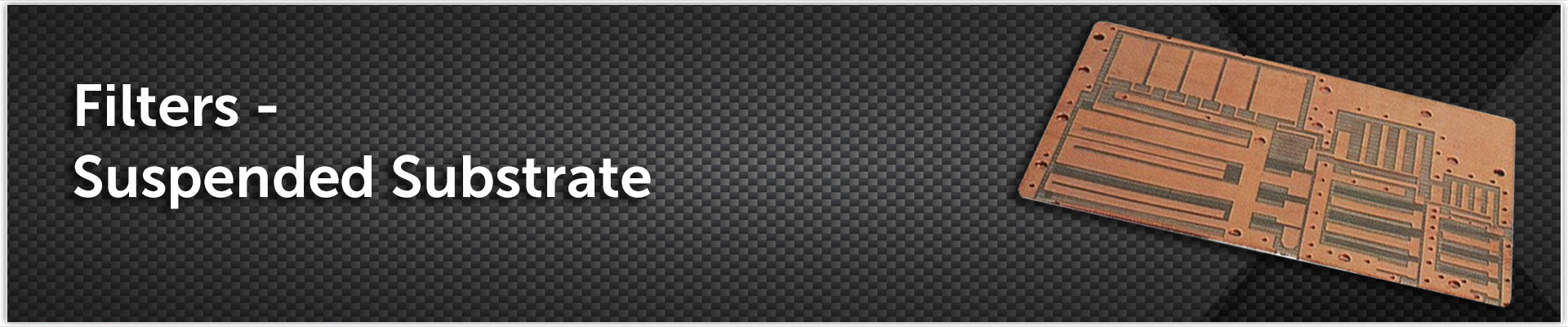

 TDS SUSPENDED SUBSTRATE PRODUCTS
At-A-Glance
  • High Pass, Lowpass Filters
  • Band Pass / Band Reject Filters
  • Multiplexers
  • Broadband / Multi Octave Bandwidths
  • Connectors
    • SMA
    • 50 Ohm Feedthroughs (SMT applications)
  • Custom design plus wide range of existing designs available

Suspended Substrate Stripline (SSS) technology is printed circuit technology that can be used for both broadband and narrowband filters in highpass, lowpass, bandpass, bandstop and multiplexer form.

The versatility of the printed circuit technology enables designs to be used in very complex mechanical configurations and allows easy integration of other components onto the circuit boards. This technology is also integrated into many of Teledyne Defence’s subsystem products such as switched multiplexers, frequency activity detectors and frequency synthesisers.

Please send your specific filter requirements directly to use via e-mail [email protected].

MARKETS & APPLICATIONS

  • EW (Electronic Warfare)
  • ESM (Electronic Support Measurement)
  • ECM (Electronic Counter Measures)
  • ELINT (Electronic Intelligence)

KEY FEATURES

  • 500MHz to 65GHz
  • Low Pass Insertion Loss
  • Higher Q than Stripline techniques
  • Repeatable Designs
  • Tight phase and amplitude tracking
  • High Reliability
  • Temperature stable
  • Hermetic Designs
  • Compact Solutions

​​
