RF Test To 40GHz

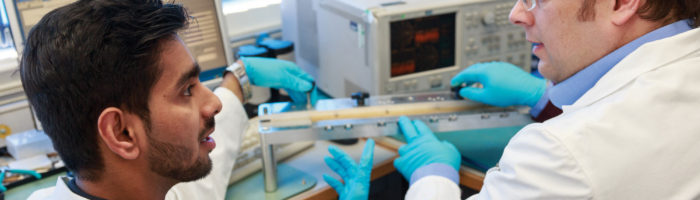

Teledyne Labtech has extensive microwave alignment and microwave testing facilities, which ensures we can provide a complete turnkey microwave assembly solution.

  • S-parameters to 40GHz
    • Gain
    • Gain ripple
    • Input and output return loss
  • Noise Figure to 26GHz
  • Power measurements to 20GHz
  • Spectral measurements to 20GHz
    • Harmonics
    • Spurius
  • Wave-guide pressure test and RF testing
​​
