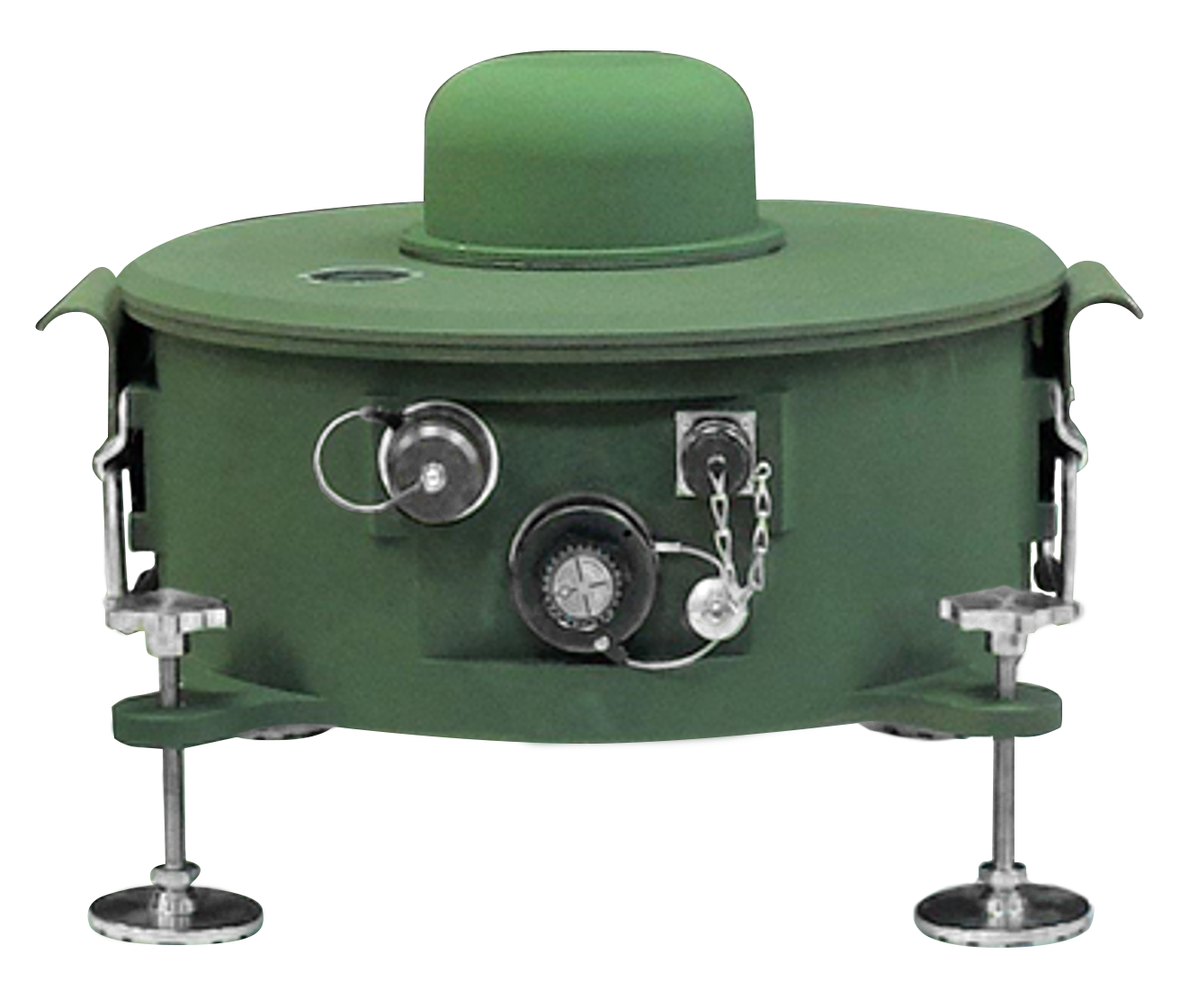

Built to operate in harsh environments, the Pulsed Transmitter unit provides radar installation decoy protection in a compact footprint and is powered by a Dewey Generator.
The unit is comprised of a power supply, power amplifier, signal generator and antenna, with a fiber optic command and control interface providing throughput speeds capable of 1.25 G bits/sec via 1310 nm, single mode, ruggedized fiber.
- Key performance parameters
- Transmit very high power C-band waveform
- Programmable parameters
- Center frequency
- Frequency change rep-rate
- Pulse rise-time
- Pulse repetition frequency (PRF)
- Pulse width
- Key performance features
- Pulse to pulse jitter
- Shaped radiation pattern
- EIRP (Effective Isotropic Radiative Power) resolution and accuracy
- Autonomous over-temperature shut-down
- Manual leveling capability
- Transport weight: 74 lbs max
- Transport volume: 22 x 22 x 20 inches
- Qualified per MIL-STD-461 EMI and MIL-STD-810 Environmental
