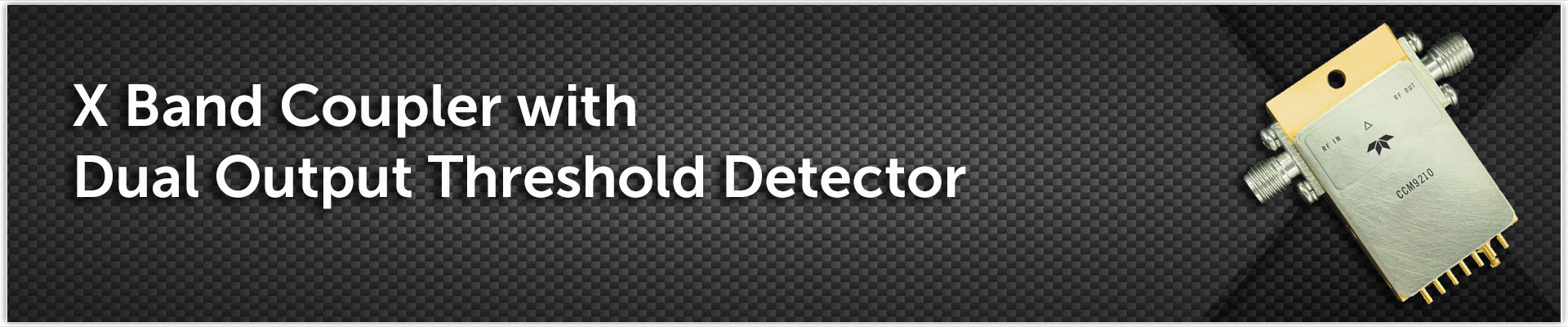

The X Band coupler with dual output has an input power range of either -5 to +10 dBm, or +5 to +20 dBm. Covering 8.0 to 9.5 GHz, insertion loss is less than 1.0 dB and VSWR is 1.5:1. The coupler/detector has two external resistors providing independently settable threshold TTL outputs. The power flatness is ~0.4 dB and hysteresis is 0.1 dB. Teledyne RF & Microwave can provide this function in other frequency ranges and input power ranges.

  • 8 to 10 GHz Operational Frequency
  • <1.0 dB Insertion Loss
  • Two Independently Settable (external resistor) Threshold Detector Outputs
  • High Speed Threshold Detector Response (<80 ηSec)

​​
