Coaxial Multi-Throw Switches

Normally Open (Non-Termin​ated)

​Part No. ​Description




CCR-38U ​
SP4T/ SP​​​​6T

Normally open, SP4T or SP6T Multi-Throw switch , 50Ω impedance, Available with 2.4mm connectors.
DC-52GHz



CCR-48K & CCR-49K.png

CCR-48K/CR-48K ​
SP3T, SP4T, SP​​​​6T, SP8T

Normally open, SP3T, SP4T, SP6T, or SP8T Multi-Throw switch, 50Ω impedance Available in Commercial and Elite models, with 2.92mm connector.s
DC-40GHz

CCR-58S/CR-58S
SP3T, SP4T, SP6T

​​Normally open, SP3T, SP4T or SP6T Multi-Throw switch, 50Ω impedance. Available in Commercial and Elite models, with SMA connectors
DC-26.5GHz



CCR-58S/CR-58S ​
SP8​T

​​Normally open, SP8T Multi-Throw switch, 50Ω impedance
Available in Commercial models, with SMA connectors
DC-18GHz

CCR-58S ​
SP10​T

Normally open, SP10T Multi-Throw switch, 50Ω impedance
Available in Commercial models, with SMA connectors
DC-18GHz

CCR-58S ​
SP12T

Normally open, SP12T Multi-Throw switch, 50Ω impedance Available in Commercial and Elite models, with SMA connectors.
DC-18GHz

CCR-38S/CR-38S
SP3T/ SP4T/ SP​​​​6T

Normally open, SP3T, SP4T, or SP6T Multi-Throw switch, 50Ω impedance
Available in Commercial and Elite models, with SMA connectors
DC-18GHz ​(commercial - CCR)
DC-22GHz ​(Elite - CR)

CCR-38S/CR-38S​
SP​​​​8T

Normally open, SP8T Multi-Throw switch, 50Ω impedance
Available in Commercial models, with SMA connectors
DC-12GHz

CCR-38S
SP10​T

Normally open, SP9T-SP10T Multi-Throw switch, 50Ω impedance
Available in Commercial models, with SMA connectors
DC-10GHz

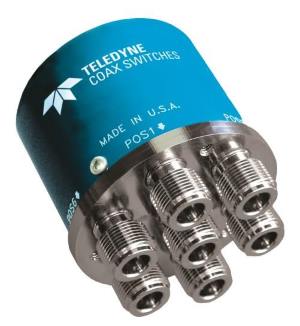

CCS-18/CS-18
SP3T/ SP4T/ SP6T/ SP​​​​8T

Normally open, ​SP3T, SP4T, SP6T, or SP8T Multi-Throw switch. Available in Commercial and Elite models, with N or TNC connectors

DC-12GHz



Normally Open, (Termin​ated)

​Part No. ​Description

CCT-38U
SP
4T/SP6T


Normally open, SP4T or SP6T Multi-Throw switch, 50Ω impedance, with 2.4mm (U) connectors. Includes internal 50Ω terminations on unused ports.
DC-52​GHz


CCT-48K/CT-48K
SP3T, SP4T, SP​​​​6T, SP8T

Normally open, SP3T, SP4T, SP6T or SPT8 ​Multi-Throw switch, 50Ω impedance. Includes internal 50Ω terminations on unused ports
Available in Commercial and Elite models, with K connectors
DC-40​GHz

CCT-58S/CT-58S
SP3T/ SP4T/ SP​​​​6T

​​Normally open, SP3T, SP4T, or SP6T Multi-Throw switch, 50Ω impedance. Includes internal 50Ω terminations on unused ports
Available in Commercial and Elite models, with SMA connectors
DC-26.5​GHz

CCT-58S
SP​​​​8T

Normally open, SP8T Multi-Throw switch, 50Ω impedance
Includes internal 50Ω terminations on unused ports
Available in Commercial models, with SMA connectors
DC-18GHz

CCT-58S
SP​​​​10T

​​Normally open, SP10T Multi-Throw switch, 50Ω impedance
Includes internal 50Ω terminations on unused ports
Available in Commercial models, with SMA connectors
DC-18GHz

CCT-58S
SP​​​​12T

Normally open, SP12T Multi-Throw switch, 50Ω impedance Includes internal 50Ω terminations on unused ports. Available in Commercial and Elite models, with SMA connectors
DC-18GHz

CCT-38S/CT-38S
SP3T/ SP4T /SP​​​​6T

​​Normally open, SP3T, SP4T, or SP6T Multi-Throw switch​, 50Ω impedance. Includes internal 50Ω terminations on unused ports
Available in Commercial and Elite models, with SMA connectors
DC-18GHz ​(commercial)
DC-22GHz ​(Elite)

CCT-38S/CT-38S​
SP​​​​8T

​​Normally open, SP8T Multi-Throw switch, 50Ω impedance
Includes internal 50Ω terminations on unused ports
Available in Commercial models, with SMA connectors
DC-12GHz

CCT-38S
SP​​​​10T

Normally open, SP10T Multi-Throw switch, 50Ω impedance
Includes internal 50Ω terminations on unused ports
Available in Commercial models, with SMA connectors
DC-12GHz​

​​
