Coaxial Multi-Throw Switches

​Latching (Non-Termin​ated)

​Part No. ​Description



Latching

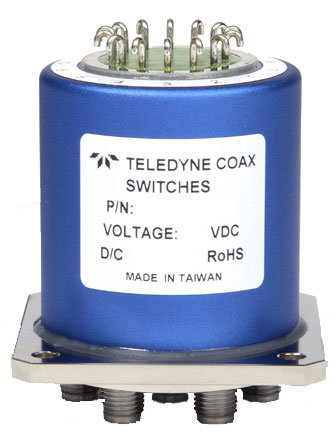

CCR-39U

Latching SP4T or SP6T Multi-Throw switch , 50Ω impedance, Available in Commercial and Elite models, with 2.4mm connectors.
DC-52GHz



​​
CCR-49K/CR-49K​
SP3T, SP4T, SP​​​​6T, SP8T


​​​​​​Latching, SP3T, SP4T, SP6T or SP8T Multi-Throw switch.
Includes internal 50Ω terminations on unused ports​
Available in Commercial and Elite models, with 2.92mm connectors
DC-40GHz


CCR-59S/CR-59S
SP3T/ SP4T/ SP​​​​6T

​Latching, SP3T, SP4Tor SP6T​ Multi-Throw switch, 50Ω
impedance​Available in Commercial and Elite models, with SMA connectors
DC-26.5GHz

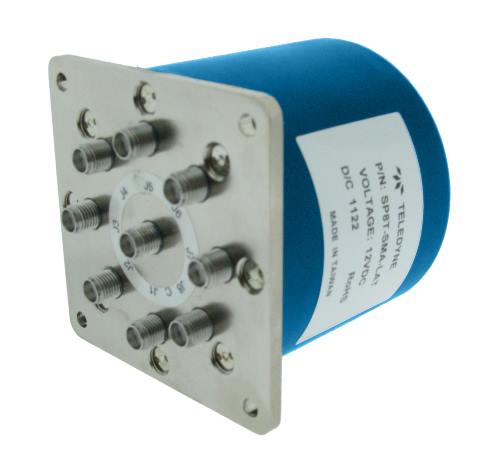

CCR-59S/CR-59S ​
SP​​8T


​Latching, SP8T Multi-Throw switch, 50Ω impedance ​
Includes internal 50Ω terminations on unused ports
Available in Commercial and Elite models, with SMA connectors
DC-18GHz​

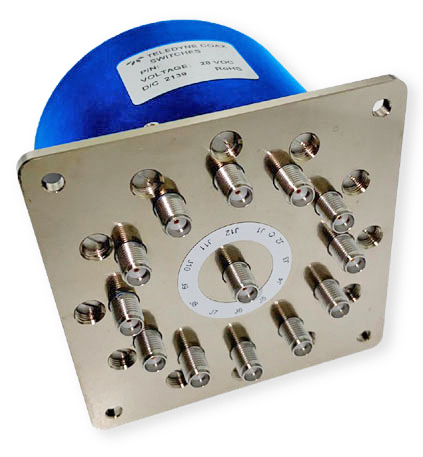

CCR-59S
SP12T

Latching, SP12T Multi-Throw switch, 50Ω impedance. Available in Commercial and Elite models, with SMA connectors
DC-18GHz​


CCR-39S/CR-39S
SP3T/ SP4T/ SP​​​​6T

​Latching, SP3T, SP4T, or SP6T Multi-Throw switch, 50Ω impedance
Available in Commercial and Elite models, with SMA connectors
DC-18GHz ​(commercial)
DC-22GHz ​(Elite)


CCR-39S ​
SP​​​​8T

​Latching, SP8T Multi-Throw switch, 50Ω impedance
Available in Commercial models, with SMA connectors
DC-12GHz


CCR-39S​
SP10​T

​Latching​, SP10T Multi-Throw switch, 50Ω impedance
Available in Commercial models, with SMA connectors
DC-12GHz



Latching (Termin​ated)

​Part No. ​Description



Latching

CCT-39U

Latching SP4T or SP6T Multi-Throw switch, 50Ω impedance. Includes internal 50Ω terminations on unused ports. Available in Commercial and Elite models, with 2.4mm connectors.
DC-52GHz

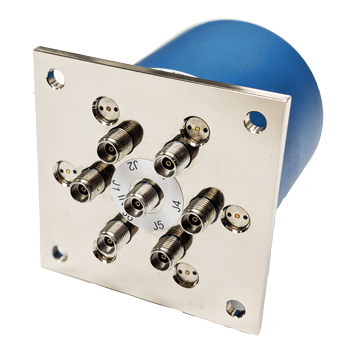

  CCT-49K/CT-49K
SP3T, SP4T, SP​​​​6T, SP8T

​​​​​Latching, SP3T, SP4T, SP6Tor ​SP8T Multi-Throw switch, 50Ω impedance. Includes internal 50Ω terminations on unused ports​
Available in Commercial and Elite models, with 2.92mm ​coconnectors
DC-40GHz


CCT-59S/CT-59S ​
SP3T/ SP4T/ SP​​​​6T

​Latching, SP3T, SP4T, or SP6T Multi-Throw switch​, 50Ω impedance. Includes internal 50Ω terminations on unused ports
Available in Commercial and Elite models, with SMA connectors
DC-26.5GHz​


CCT-59S ​
SP​​​​8T

​Latching, SP8T Multi-Throw switch​, 50Ω impedance
Includes internal 50Ω terminations on unused ports
Available in Commercial models, with SMA connectors
DC-18GHz


CCT-59S ​
SP​​​​12T

​Latching, SP12T Multi-Throw switch, 50Ω impedance. Includes internal 50Ω terminations on unused ports. Available in Commercial and Elite models, with SMA connectors
DC-18GHz


CCT-59S ​
SP​​​​10T

​Latching, SP10T Multi-Throw switch​, 50Ω impedance
Includes internal 50Ω terminations on unused ports
Available in Commercial models, with SMA connectors
DC-18GHz

CCT-39S/CT-39S
SP3T/ SP4T/ SP​​​​6T

Latching, SP3T, SP4T, or SP6T Multi-Throw switch​, 50Ω impedance. Includes internal 50Ω terminations on unused ports
Available in Commercial and Elite models, with SMA connectors
DC-18GHz ​(commercial)
DC-22GHz ​(Elite)


CCT-39S
SP​​​​8T

​Latching, SP8T Multi-Throw switch​, 50Ω impedance
Includes internal 50Ω terminations on unused ports
Available in Commercial models, with SMA connectors
DC-12GHz


CCT-39S ​
SP​​10T

​Latching, SP10T Multi-Throw switch​, 50Ω impedance
Includes internal 50Ω terminations on unused ports
Available in Commercial models, with SMA connectors
DC-10GHz

​​
